SAT 1008 SUBA

The SAT 1008 SUBA 600-Watt active subwoofer is the ultimate in low-frequency reproduction, and the built-in stereo crossover makes it ideally suited for use with any of our active 2-way loudspeakers. Powered by a 600-Watt Class-D amplifier, 8” long-excursion subwoofer and an incredible array of professional features, the SAT 1008 SUBA produces extreme levels of rich, deep and tight bass.

Powerful Amplifier and DSP

Thanks to our revolutionary Class-D amplifier and state-of-the-art DSP technology, we are able to provide you with enormous power and incredible sonic performance in an easy-to-use, ultra-portable and lightweight package. A built-in intelligent limiter gives your subwoofer full protection from burnout and will keep your party going all night long.

Custom-Engineered Transducers

Powerful, high-efficiency Class-D amplifiers coupled with state-of-the-art DSP functionality sure sounds impressive – but what about the part of the system you actually hear? Our LF transducers are designed specifically for each application – it’s what sets us apart from the competition. When you buy a Behringer active subwoofer, you can rest assured that the transducer inside has been engineered to perform flawlessly with every other element for truly professional results. The SAT 1008 SUBA active subwoofer is capable of extremely high sound pressure levels: 110 dB (Max. @ 1 m), with a frequency range of 30 – 145 Hz.

Take Control

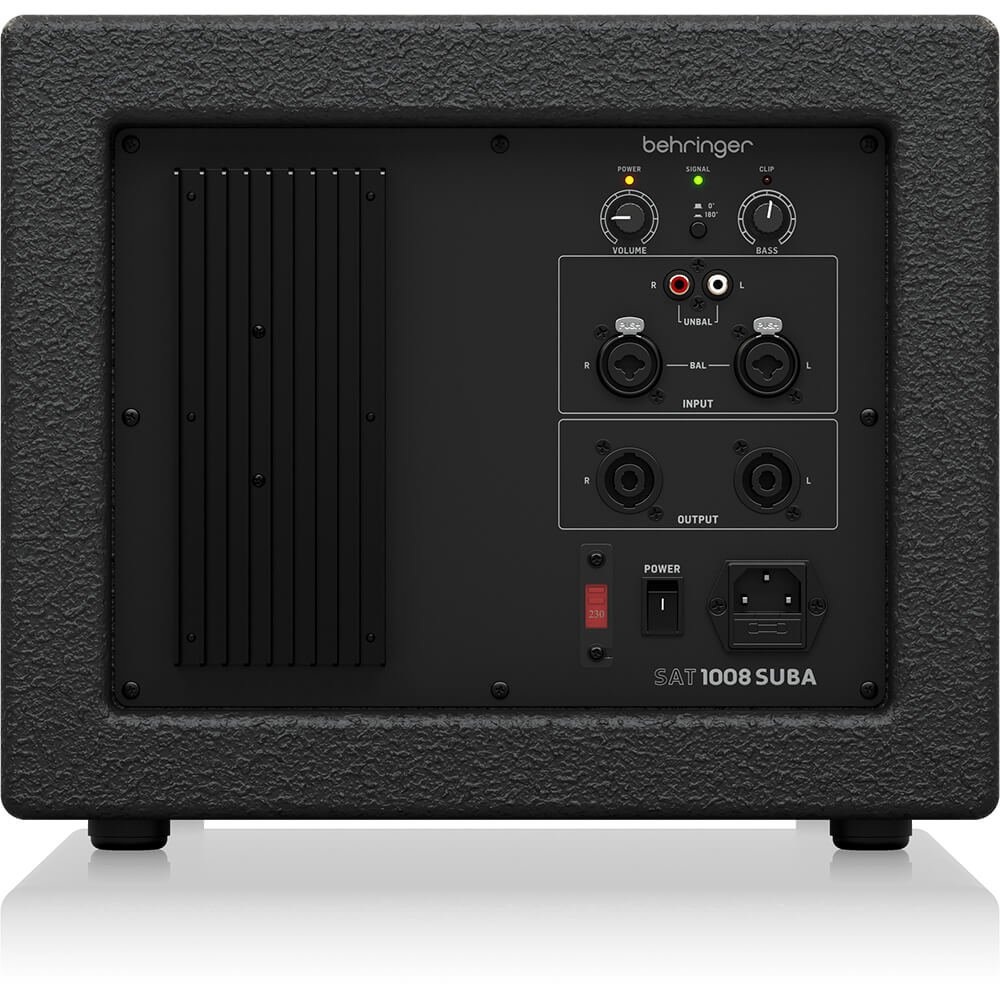

The SAT 1008 SUBA features balanced XLR combo inputs and lockable NL4 outputs. The subwoofer provides optional RCA input modes for multiple preferences. The bass volume is adjustable to best match your satellite. A volume knob controls the input gain, and the Phase switch reverses the output phase to compensate for frequency cancellation between the subwoofer and satellite speakers. LEDs show operational status at a glance, including power, signal present and input overloads. Rounding out this stellar set of features is an RMS and Peak limiter, which provides the ultimate in protection for the LF driver.

Sound Value

Stop by your local authorized Behringer dealer and listen to the SAT 1008 SUBA today, find out why more professionals are turning to Behringer active subwoofers for their superb performance and extraordinary value. The SAT 1008 SUBA is ideal for any music application – at a price that is unheard of in this class. When you see and hear what they can do, you’ll want to get your own SAT 1008 SUBA – with money to spare!



Technical Specifications

Amplifier
Output power (Peak) 600 W
Output power (RMS) 200 W
Audio Inputs
Input 1 / 2 2 x XLR/1/4″ combo sockets / RCA unbalanced sockets
Sensitivity XLR -8 dBu / RCA -4 dBu
Input impedance 10 kΩ unbalanced, 20 kΩ balanced
Audio Outputs
Output 1 / 2 2 x lockable NL4 connectors
Output impedance 8 Ω
High-pass filter 150 Hz, butterworth, 24 dB/oct. slope
Controls
Level gain -∞ to +26 dB, adjustable
Xover 130 Hz
Bass gain -∞ to +44 dB, adjustable
Phase 0 / 180°, switchable
System Data
Frequency response, ±3 dB 30 Hz – 145 Hz
Signal-to-noise (@100 Hz) >80 dB
Sound pressure level (half space) Max. 110 dB @ 1 m
Woofer 8″ (200 mm)
Limiter Yes
Indicators
Signal LED Green
Clip LED Red
Power LED Amber
Amplifier protection Full short circuit, open circuit, thermal protection, Auto mute
