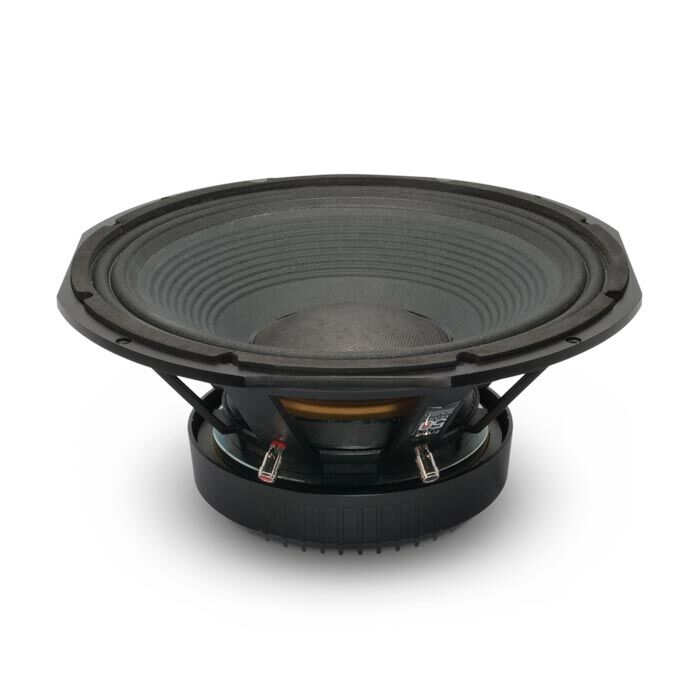

Fane Colossus 15XB Naked Speaker

SUB BASS DRIVER

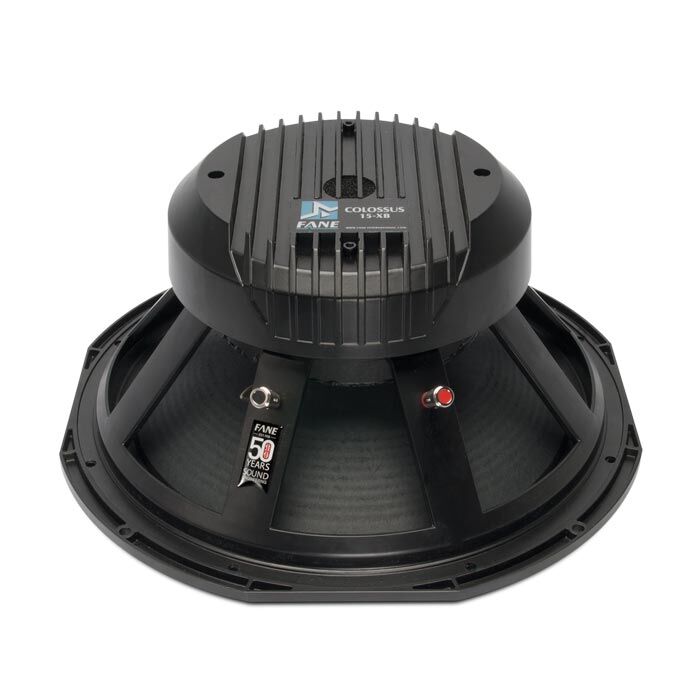

The Colossus 15XB is intended for use as a high-output sub-bass driver either singly or in multi way systems. The unit features a 4 inch ‘sandwich’ inside and outside windings voice coil immersed in a symmetric magnetic field and centralized by using two suspensions in a dual arrangement to maintain ultra linearity and stability at high excursions. The heavily ribbed straight-sided paper cone membrane is reinforced with high-strength composite fibres to resist deformation under extreme loads. The driver handles 800 Watts (A.E.S.) continuous and can cope with peaks in excess of 3200 Watts. This is due to advanced thermal management in the form of a vented die-cast chassis and motor system using an internal heatsink coupled to a large vaned heatsink mounted on the rear of the unit. These measures effectively remove heat from the voice coil resulting in extremely low-power compression. The Colossus 15XB is designed for use in 70 to 150 Litre ported enclosures.

  • 1600 W Program Power.
  • 99 dB Sensitivity (1W/1m).
  • Versatile replacement driver for most bass reflex applications. Providing deep, warm and well controlled bass.
  • Vented chassis and motor design provides efficient thermal management and extremely low power compression.
  • Dual ‘spaced’ suspension system and advanced materials offers ultra-linearity, mechanical stability and superior acoustic performance at high levels of excursion.
  • Heavily ribbed, fibre loaded, UK manufactured straight sided cone for increased strength, durability and performance.
  • Designed for optimum use in 70-150 Litre ported enclosure designs.
  • 4-inch Inside/ outside windings copper voice coil.
Description
Electro Acoustic Specifications
Nominal Chassis Diameter 15″ / 381 mm
Impedance 4 /8 /16 Ω
Power Handling 800 W (A.E.S.)
Peak Power (6dB Crest Factor) 3200 W (A.E.S.)
Usable Frequency Range (-6dB) 40 Hz – 1 kHz
Sensitivity (1W – 1m) Wideband 99 dB
Moving Mass (inc. Air Load) 108 grams
Minimum Impedance (Zmin) 7.5 Ω
Effective Piston Diameter 13.03″ / 330.96 mm
Magnet Weight 120 oz
Magnetic Gap Depth 0.39″ / 9.90 mm
Flux Density 1.1 Tesla
Coil Winding Height 0.90″ / 22.86 mm
Voice Coil Diameter 4.0″ / 101.6 mm
Speaker Type Sub Bass Driver
Speaker Series The Professional Series
Program Power 1600 W (A.E.S.)
Sensitivity (1W / 1m) Working band
Thiele Small Parameters (TSPs)
FS 38 Hz
Re 6.2 Ω
QMS 7.48
QES 0.336
QTS 0.32
Vas 168 Litres
Vd 0.641 Litres
CMS 0.162 mm/N
BL 22.08 T/m
MMS 108 grams
Xmax 7.5 mm
Sd 855.3 cm2
Efficiency 2.10%
Le 1.5 mH
EBP 113.1 Hz
Materials of Construction
Coil Former Material Glass Fibre
Voice Coil Material Copper – Inside/ Outside
Magnet Material Ferrite
Chassis Material Die-cast Aluminium
Cone Material Straight Poly-cellulose Ribbed
Surround / Edge Termination Polyvinyl Damped Multi Roll. Poly Cotton
Dust Dome Material Solid Paper
Connectors Push-button Spring Terminals
Polarity Positive voltage at red terminal causes forward motion of cone.
Mounting / Shipping Information
Overall Diameter 16″ / 406.4 mm
Width Across Flats 15.25″ / 387.4 mm
Flange Height 0.305″ / 7.8 mm
Baffle Hole Diameter F/M 13.85″ / 351.79 mm
Baffle Hole Diameter R/M 14″ / 355.6 mm
Gasket Supplied Front & Rear
Outer Fixing Holes 4x ø 0.281″ on 15.5″ PCD / 4x ø 7.1 mm on 393.7 mm PCD
Inner Fixing Holes 8x ø 0.281″ on 14.56″ PCD / 8x ø 7.1 mm on 370 mm PCD
Depth 7.13″ / 181 mm
Weight 27.28 lb / 12.4 Kg
Recommended Enclosure Volume 2.47 – 5.29 cu ft / 70 – 150 Litres
Shipping Weight 30.58 lb / 13.9 Kg
Packing Carton Dimensions (W) 440 (D) 440 (H) 220 mm
