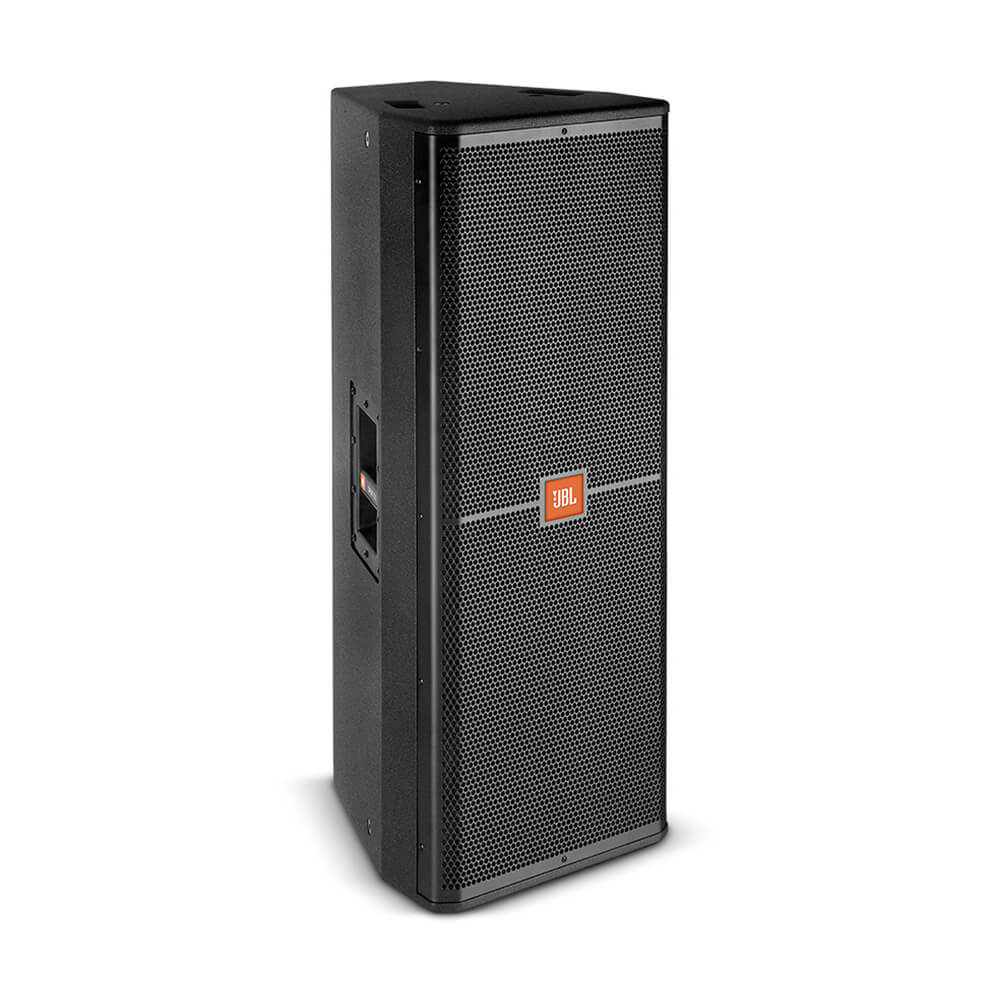

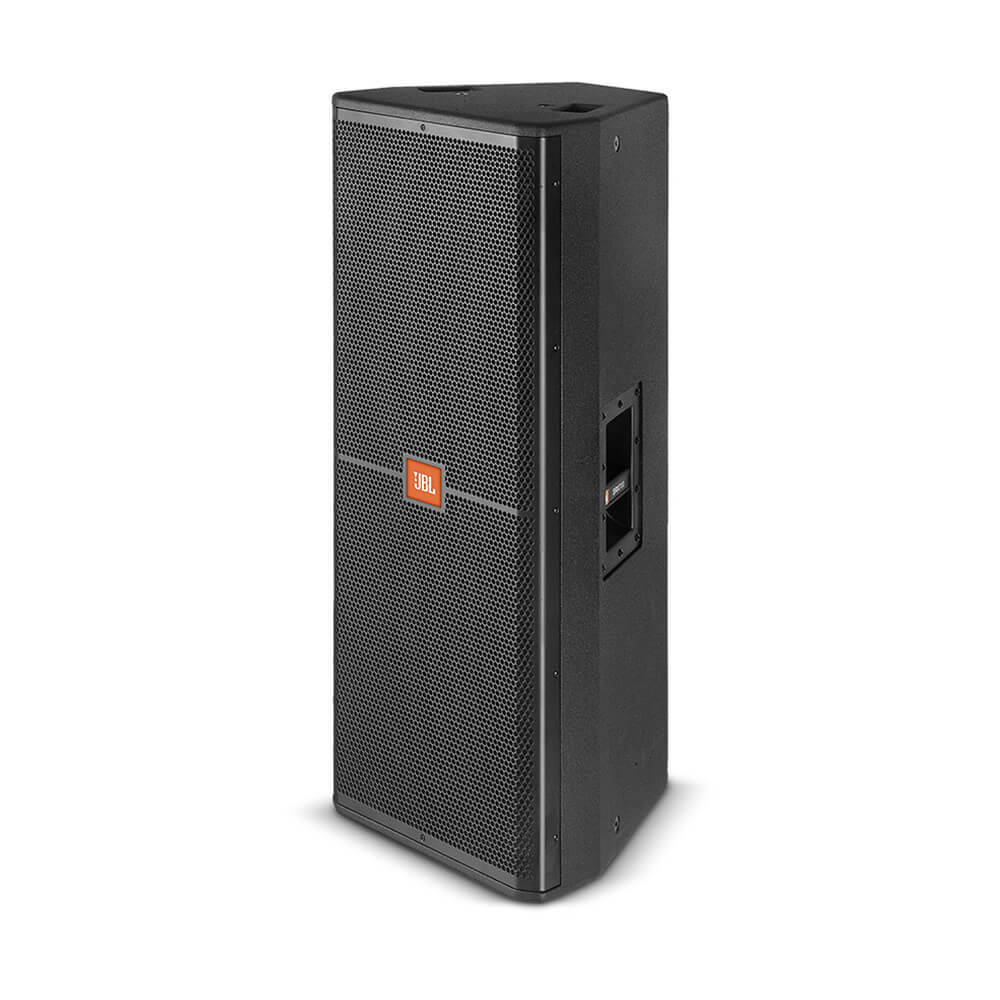

JBL SRX722 Dual 12″ Two-Way Passive Speaker
Taking a page from high performance hot-rod design, JBL filled the smallest possible cabinet with the highest possible power capacity. Especially suited for subwoofer-equipped systems, the SRX722 delivers very high acoustic output from a compact, easily transported system. A pair of 2262H Differential Drive woofers handles 1600 watts (continuous) of power. Top these off with the world-class, 2452H 4″ compression driver, and you have big PA performance that fits easily into a sport utility vehicle.
FEATURES:
- Light-weight, compact and very high-power.
- Dual 305 mm (12 in) Differential Drive® low-frequency drivers for very high acoustic output.
- 102 mm (4 in) voice-coil neodymium compression driver for high-power capacity and very light-weight.
- 75°x 50° coverage.
- Bi-amplified or full-range passive operation.
- Flying version available (SRX722F) with five suspension points may be used with optional M10 eyebolts or detachable track fittings.
Designed primarily for use in subwoofer-equipped systems, the JBL SRX722 Dual 12″ Two-Way Passive Speaker delivers very high acoustic output from a compact, easily transported system. The JBL SRX722 Dual 12″ Two-Way Passive Speaker contains two 305 mm (12 in) 2262H patented* Differential Drive® woofers with combined power handling of 1200 watts (continuous). For the high frequencies, a 2451H 102 mm (4 in) voice-coil, neodymium compression driver is mounted to a 75° by 50° aluminum horn. The 75° coverage angle of the JBL SRX722 Dual 12″ Two-Way Passive Speaker is wide enough to provide coverage of an audience when used one-per-side yet narrow enough to allow splaying of multiple enclosures without excessive coverage overlap.
Bi-amp or full-range passive operation may be selected by means of a recessed, high-current switch mounted on the input plate.
The enclosure is constructed of top quality birch plywood and coated in JBL’s rugged DuraFlex™ finish. The attractive CNC-machined, 16-gauge steel grille wraps around the sides of the enclosure so there are no protruding lips on the front of the box to create acoustical interference. The grilles are internally lined with acoustically transparent foam to provide additional driver protection and give a very professional appearance.
SPECIFICATIONS:
| System Type: | Dual 12″, two-way, bass-reflex |
| Frequency Range | (-10 dB): 72 Hz – 20 kHz |
| Frequency Response | (±3 dB): 81 Hz – 20 kHz |
| Coverage Pattern: | 75º x 50º nominal |
| Dimensions (H x W x D): | 965 mm x 394 mm x 394 mm |
| Net Weight: | 32 kg (72 lb) |
| LF Driver: | 2 x JBL 2262H Differential Drive® woofer |
| HF Driver: | 1 x JBL 2452H 4″ (voice coil) compression driver |
| Sensitivity (1w/1m): | 97 dB SPL (Passive Mode) |
| Nominal Impedance: | 4 ohms |
| Rated Maximum SPL: | 135 dB SPL @1 m (3.3 ft) |
| Power Rating (Continuous/Program/Peak): | 1200 W / 2400 W / 4800 W |
