- Light-weight and very high-power.
- Dual 380 mm (15 in.) Differential Drive® low-frequency drivers for extended low-frequency output.
- 102 mm (4 in) voice-coil neodymium compression driver for high-power capacity and very lightweight.
- 75°x 50° coverage.
- Bi-amplified or full-range passive operation.
- On SRX725F model, five suspension points may be used with optional M10 eyebolts or detachable track fittings.

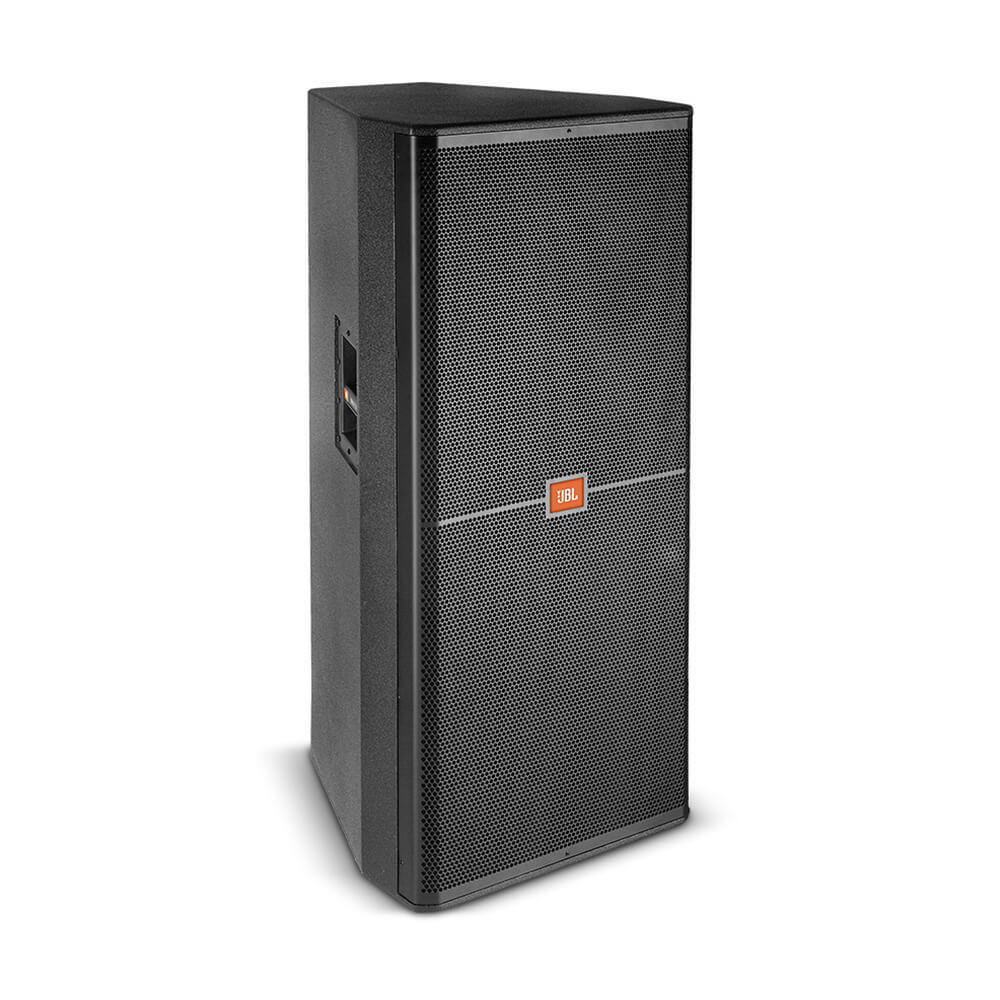

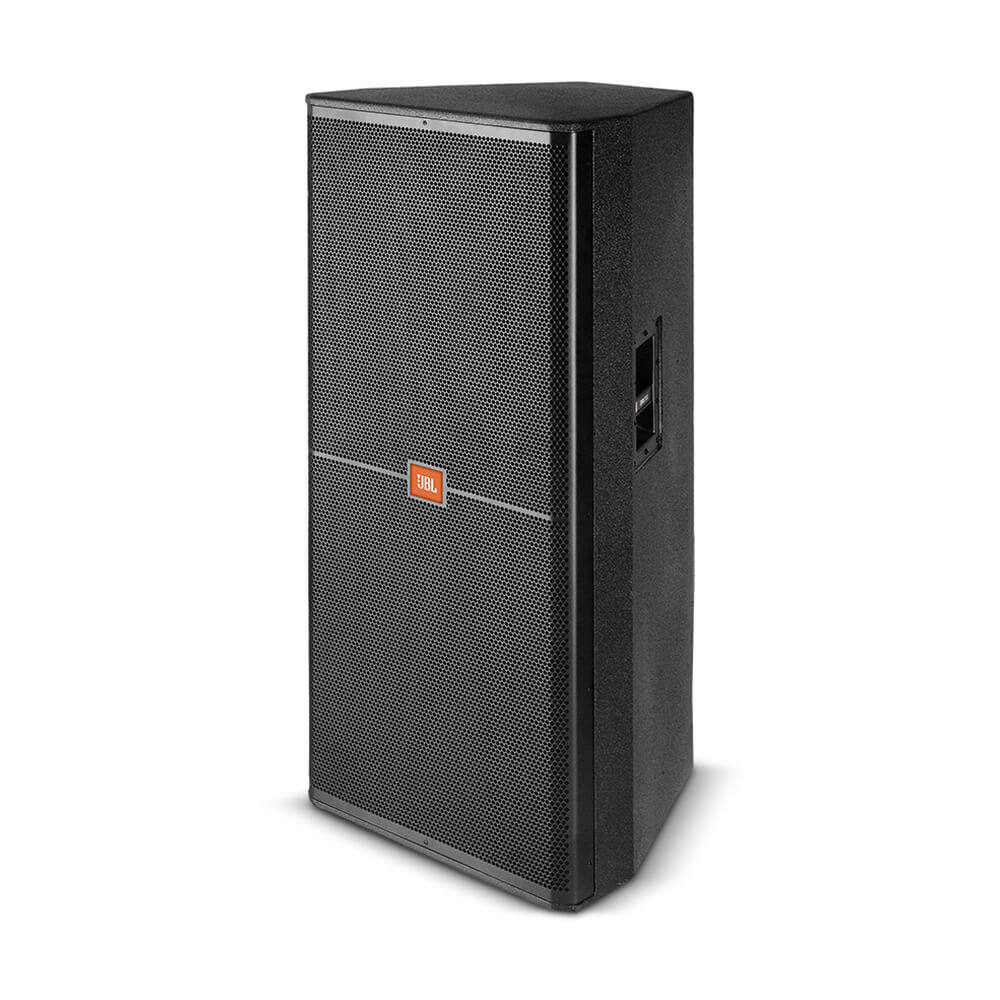

The JBL SRX725 Dual 15″ Two-Way Passive Speaker is an excellent choice when the application calls for high performance and simplicity. A pair of JBL SRX725 Dual 15″ Two-Way Passive Speakers and a single, high-power amplifier is a complete sound system capable of reinforcing bass and kick drum or playing high-level music in clubs and other venues. The JBL SRX725 Dual 15″ Two-Way Passive Speaker is comprised of two 380 mm (15 in) 2265H patented* Differential Drive® woofers with combined power handling of 1200 watts (continuous). For the high frequencies, the legendary 2451H 102 mm (4 in) voice-coil, neodymium compression driver is mounted to a 75° by 50° aluminum horn. The 75° coverage angle of the JBL SRX725 Dual 15″ Two-Way Passive Speaker is wide enough to provide coverage of an audience when used one-per-side yet narrow enough to allow splaying of multiple enclosures without excessive coverage overlap.
Bi-amp or full-range passive operation may be selected by means of a recessed, high-current switch mounted on the input plate.
The enclosure is constructed of top quality birch plywood and coated in JBL’s rugged DuraFlex™ finish. The attractive CNC-machined, 16-gauge steel grille wraps around the sides of the enclosure so there are no protruding lips on the front of the box to create acoustical interference. The grilles are internally lined with acoustically transparent foam to provide additional driver protection and give a very professional appearance.
|System Type:||Dual 15″, two-way, bass-reflex|
|Frequency Range (-10 dB):||37 Hz – 20 kHz|
|Frequency Response (±3 dB):||53 Hz – 20 kHz|
|Coverage Pattern:||75º x 50º nominal|
|Dimensions (H x W x D):||1219 mm x 541 mm x 508 mm|
|Net Weight:||43 kg (96 lb)|
|LF Driver:||2 x JBL 2265H Differential Drive® woofer|
|HF Driver:||1 x JBL 2452H 4″ (voice coil) compression driver|
|Sensitivity (1w/1m):||99 dB SPL (Passive Mode)|
|Nominal Impedance:||4 ohms|
|Rated Maximum SPL:||136 dB SPL @1 m (3.3 ft)|
|Power Rating (Continuous/Program/Peak):||1200 W / 2400 W / 4800 W|
