- Dual 18 in, 2268H Differential Drive® woofers for extended low frequency output.
- Large vent area for reduced distortion.

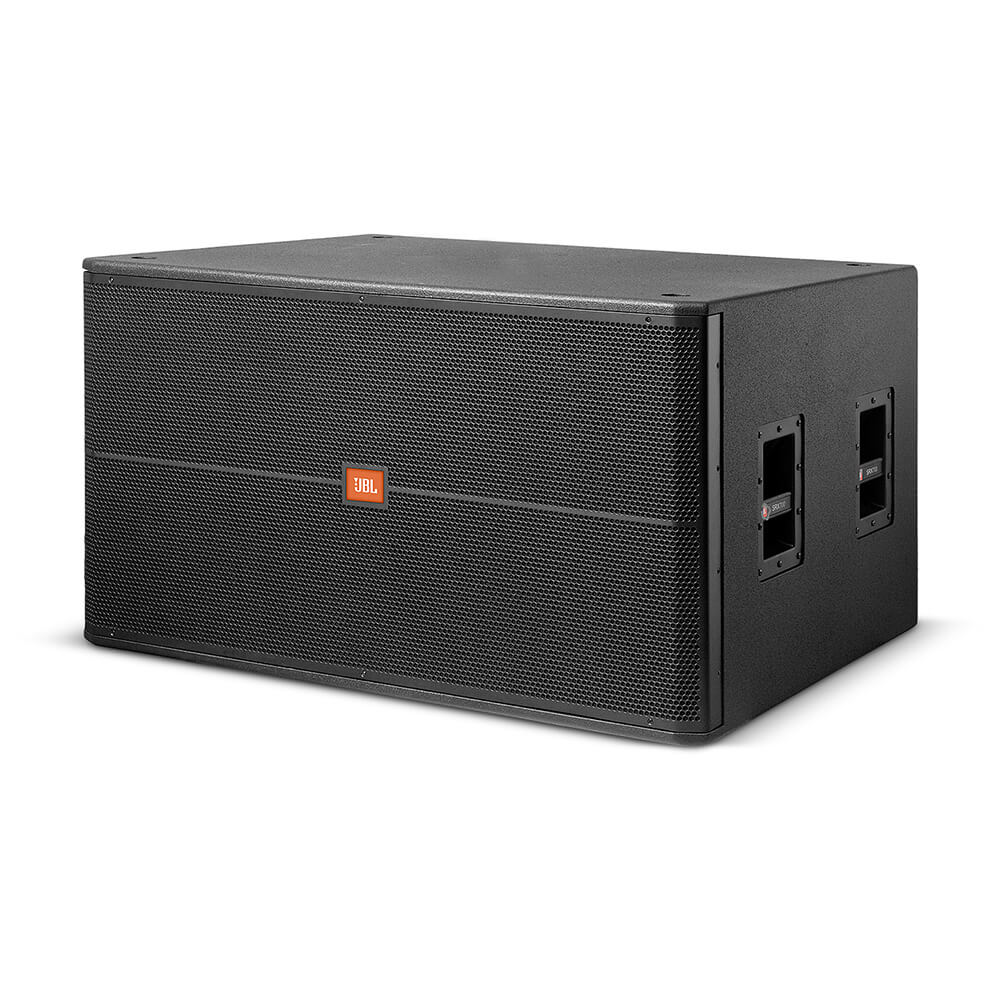

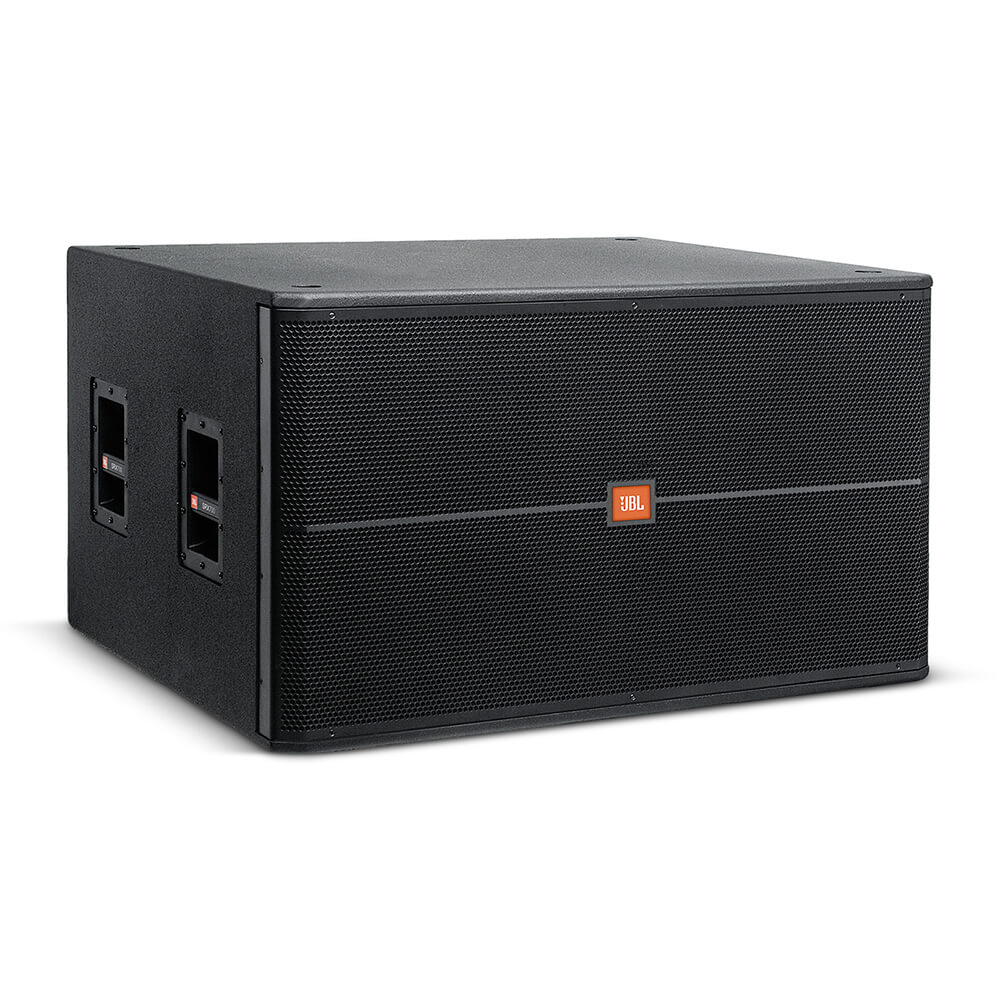

The JBL SRX728S Dual 18″ Passive Subwoofer is a high power subwoofer system containing two 2268H neodymium magnet, patented* Differential Drive®, 18″ woofers in a front-loaded, vented enclosure. The enclosure is designed to present a minimum frontal area. The system offers complete input connection flexibility for compatibility with a variety of cabling schemes. A recessed, external switch allows selection of either contacts +1/-1 or +2/-2. By relocating an internal connector, it is also possible to drive each woofer discretely from a separate amplifier channel.
The enclosure is constructed of top quality birch plywood and coated in JBL’s rugged DuraFlex™ finish. Each woofer is housed in an isolated chamber and the enclosure is heavily braced to maximize low-frequency performance. The attractive CNC machined, 16 gauge steel grille is internally lined with acoustically transparent foam to provide additional driver protection and give a very professional appearance.
|System Type:||Dual 18″ bass-reflex subwoofer|
|Frequency Range (-10 dB):||27 Hz – 220 Hz|
|Frequency Response (±3 dB):||33 Hz – 220 Hz|
|Dimensions (H x W x D):||602 mm x 1067 mm x 838 mm|
|Net Weight:||76 kg (166.5 lb)|
|LF Driver:||2 x JBL 2268H Differential Drive® woofer|
|Sensitivity (1w/1m):||98 dB SPL|
|Nominal Impedance:||4 ohms (parallel mode), 8 ohms x 2 (discrete mode)|
|Rated Maximum SPL:||136 dB SPL @1 m (3.3 ft)|
|Power Rating (Continuous/Program/Peak):||1600 W / 3200 W / 6400 W|
