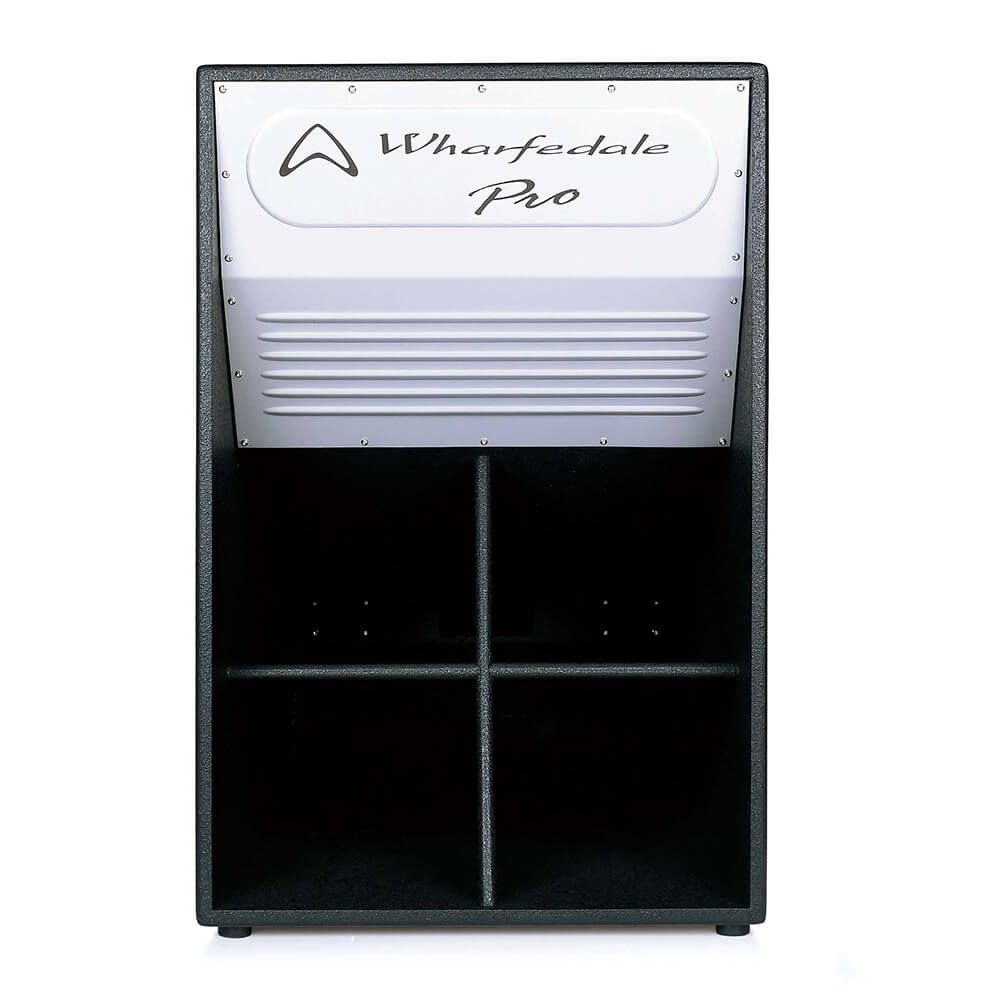

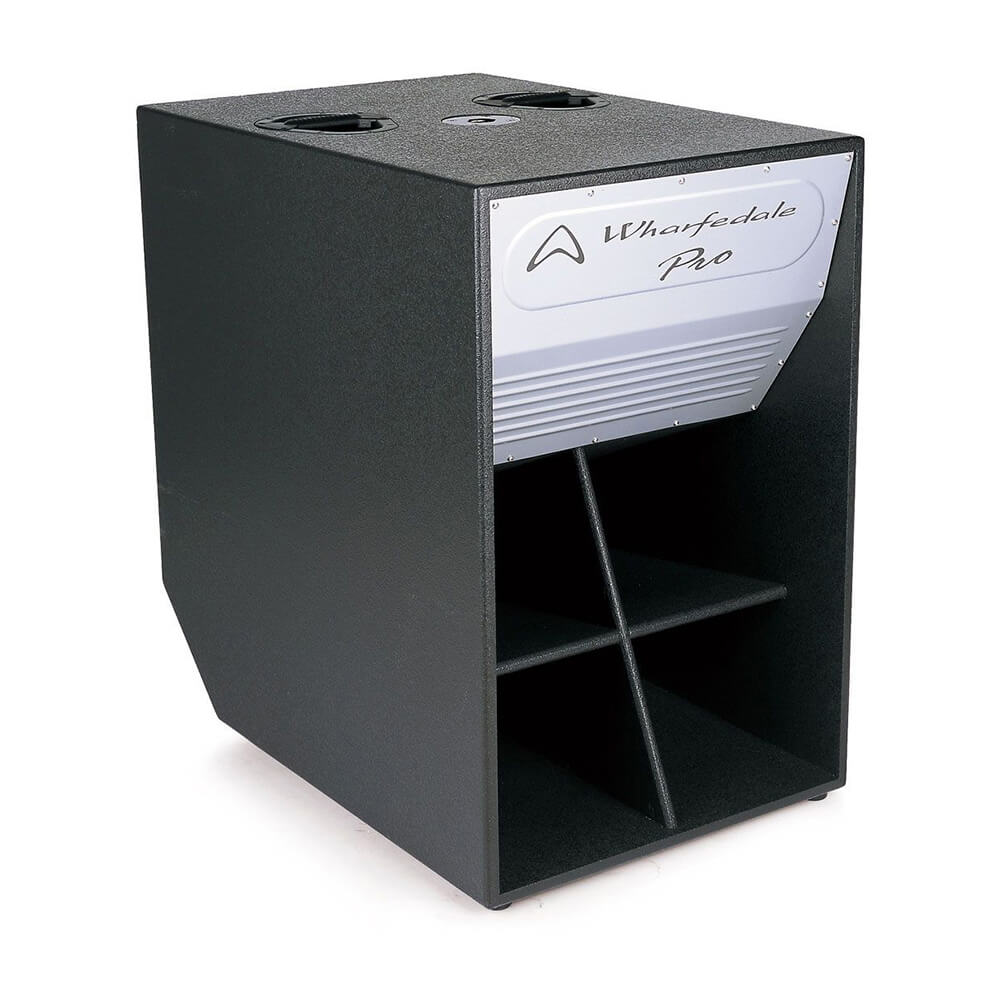

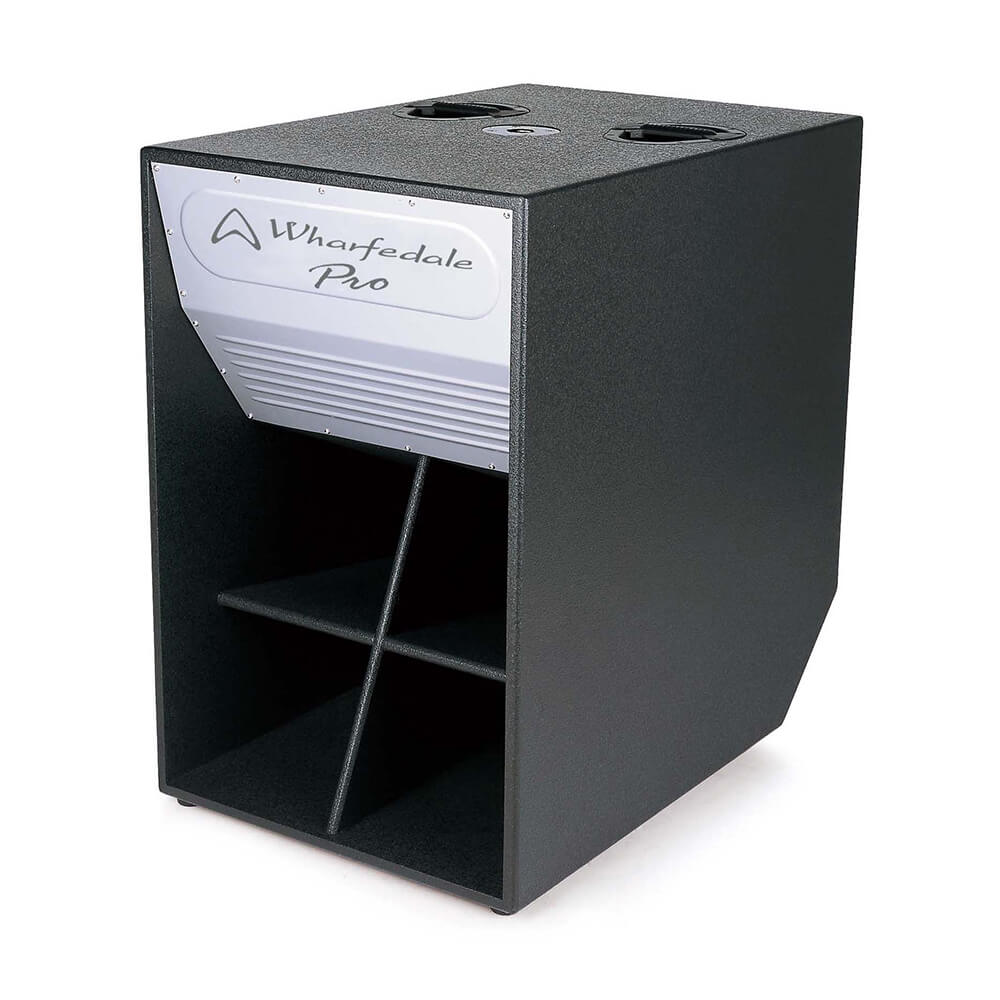

Wharfedale Pro Delta F18B Passive Subwoofer

FOLDED HORN SUPERSUB

3200 W Peak, 1600 W Programme, 800 W RMS
141 dB Max SPL
8Ω Impedance
Folded horn design for long throw low end
30 Hz – 300 Hz Frequency response
2 x Parallel speakON compatible Inputs
Textured black paint finish
18mm Plywood construction
4 x 4-way high impact plastic handles
Supplied with 4 robust castors
Integral 35 mm pole socket

MONSTER !

Our passive, single 18″ folded horn subwoofer delivering a massive 141dB (max SPL) .

Wharfedale Pro Delta F18B Passive Subwoofer is supplied with castors so is a surprisingly portable and easily moveable enclosure. Where significant extension of low frequency output of a sound system is required over middle-long distances the addition of one or more Wharfedale Pro Delta F18B Passive Subwoofers will provide high output low frequency enhancement to the overall sound system.

The folded horn design enables the Wharfedale Pro Delta F18B Passive Subwoofer to deliver ground shaking low frequencies over long distances (Unlike direct radiating designs which provide near to middle distance sound).

The Wharfedale Pro Delta F18B Passive Subwoofer is designed to work with an external, active crossover unit.

HARDWARE ENCLOSURE

The magic of the Wharfedale Pro Delta F18B Passive Subwoofer happens inside with its folded horn design but, externally, the Wharfedale Pro Delta F18B Passive Subwoofer also features practical hardware features.

Wharfedale Pro Delta F18B Passive Subwoofer is supplied with four (4) sturdy and robust castors so is a surprisingly portable and easily moveable enclosure.

There are also 4 carry handles placed top and bottom to help move this subwoofer into the best location.
On the top surface there is even a standard 35mm pole socket allowing for a full range loudspeaker to be placed on a pole.

CHECK THE CURVES!

Its only a graph but….. feel it!

#boooooooom

SPECIFICATIONS

Model Name	Wharfedale Pro Delta F18B Passive Subwoofer
System Type	Passive
Configuration	Folded horn subwoofer
Frequency Response (+/-3 dB)	30 Hz – 300 Hz
Frequency Range (-10 dB)
Sensitivity (2.83 v / 1 m)	106 dB
Calculated Maximum SPL @1 m	141 dB
System Rated Impedance	8 Ω
Low Frequency Transducer
Size	470 mm / 18″
Voice Coil Size	102 mm / 4″
Rated Impedance	8 Ω
LF Power (re:AES2-2012)	800 w
Power
System Continuous Power	800 w
System Programme Power	1600 w
System Peak Power	3200 w
Crossover frequency
Input Connector	2 x NL4 (speakON Compatible)
Hardware
Pole Mount	35 mm
Handles	4 on Sides
Enclosure
Enclosure Material	18 mm Plywood
Finish	black paint
Grille Material & Finish
Dimensions – Unpacked
Height	914 mm / 36.0”
Width Front	609.6 mm / 24.0”
Width Rear	609.6 mm / 24.0”
Depth	914 mm / 36.0”
Dimensions – Packed
Height	1009 mm / 39.72”
Width Front	689 mm / 27.12”
Width Rear	689 mm / 27.12”
Depth	994 mm / 39.13”
Weight
Net Weight (kg / lbs)	80.5 kg / 177.1 lbs
Gross Weight (kg / lbs)	85.2 kg / 187.44 lbs

Click to enlarge

Order on WhatsApp

Call 0740418548

Add to wishlist

Categories: PA Equipment, PA Subwoofer, Passive speaker

Description

Model Name	Wharfedale Pro Delta F18B Passive Subwoofer
System Type	Passive
Configuration	Folded horn subwoofer
Frequency Response (+/-3 dB)	30 Hz – 300 Hz
Frequency Range (-10 dB)
Sensitivity (2.83 v / 1 m)	106 dB
Calculated Maximum SPL @1 m	141 dB
System Rated Impedance	8 Ω
Low Frequency Transducer
Size	470 mm / 18″
Voice Coil Size	102 mm / 4″
Rated Impedance	8 Ω
LF Power (re:AES2-2012)	800 w
Power
System Continuous Power	800 w
System Programme Power	1600 w
System Peak Power	3200 w
Crossover frequency
Input Connector	2 x NL4 (speakON Compatible)
Hardware
Pole Mount	35 mm
Handles	4 on Sides
Enclosure
Enclosure Material	18 mm Plywood
Finish	black paint
Grille Material & Finish
Dimensions – Unpacked
Height	914 mm / 36.0”
Width Front	609.6 mm / 24.0”
Width Rear	609.6 mm / 24.0”
Depth	914 mm / 36.0”
Dimensions – Packed
Height	1009 mm / 39.72”
Width Front	689 mm / 27.12”
Width Rear	689 mm / 27.12”
Depth	994 mm / 39.13”
Weight
Net Weight (kg / lbs)	80.5 kg / 177.1 lbs
Gross Weight (kg / lbs)	85.2 kg / 187.44 lbs
