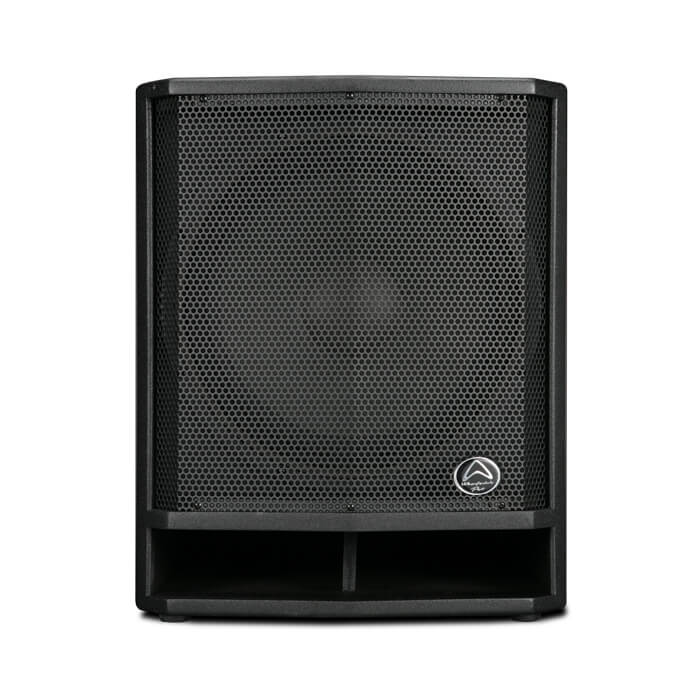

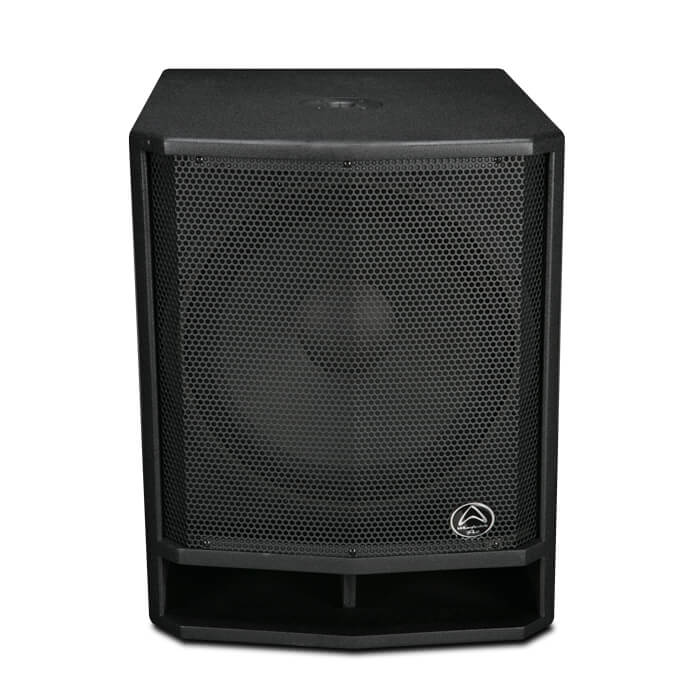

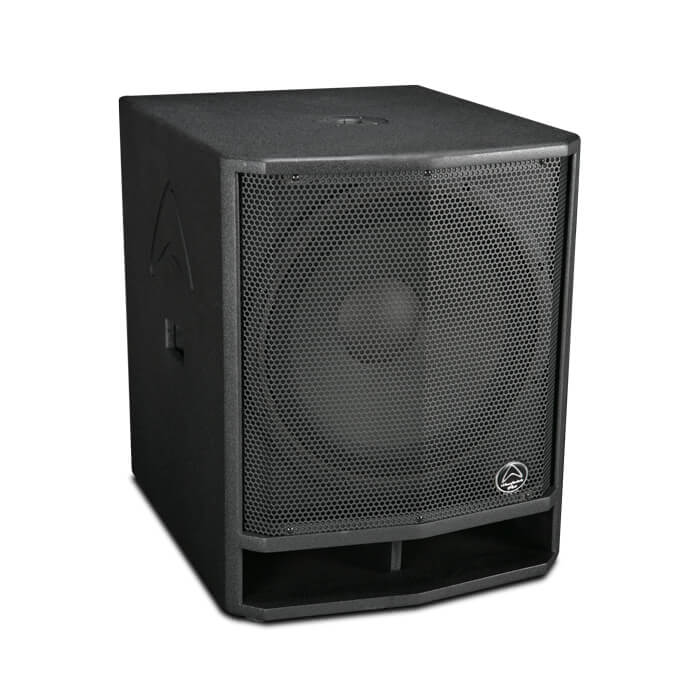

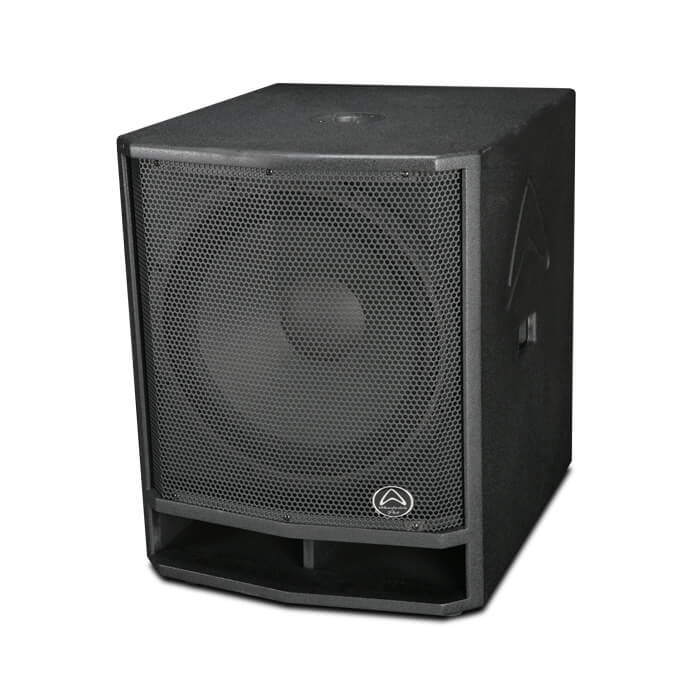

Wharfedale Pro DVP-X18B 18″ Subwoofer 500W RMS

Key Features:

500W RMS / 1000W Programme / 2000W Peak
30Hz – 150Hz frequency response
Proprietary enhanced Rhino Rock paint for a chip resistant finish
High powered LF driver using a double-roll surround
Fine-tuned crossovers, built in house for audio signal purity and optimised tuning
Parallel port mouth design creates reflective boundary, maximizing low end punch.
18″ passive subwoofer
18″ LF driver with 2.5″ voice coil
133 dB Max SPL @ 1 meter

EASY CLEANING

Full range models feature a 90° x 60° Elliptical Waveguide

In real-world terms this means that the higher frequencies can be heard with definition at 90° in the horizontal plane, and 60° in the vertical.

All full range models in the DVP-X series use this same elliptical waveguide design which makes for controllable coverage when using multiple DVP-X series loudspeakers.

routed logo

DVP-X features a routed Wharfedale Pro logo.

It is a logo to be proud of. A logo that lets your audience know that the sound of your even will be of the highest possible quality.

IRIS X Compression drivers

The coil size and electrical sensitivity of a loudspeaker transducer is critical to its performance. Impact-X loudspeakers now include our proprietary IRIS X design which delivers Increased coil Radius and Increased electrical Sensitivity. The radius of the coil ensures smooth heat dissipation during prolonged high volume use, while the increased electrical sensitivity ensures that the transducer converts as much electrical power into sound output as the laws of physics allow.

A hot transducer wastes energy, risks damage and distorts. IRIS X reduces this through improved heat dissipation and improved efficiency.

In real-world terms, IRIS X transducers deliver higher SPL with less distortion. They lead the market with specifications and are designed and built entirely within Wharfedale Pro.

Increased Radius Increased Sensitivity

DOUBLE ROLL SURROUND & DRIVER TECHNOLOGY

DVP X18B loudspeakers use the latest in Wharfedale Pro driver technology: Engineers have incorporated a curvilinear, double-roll surround for smooth transitions and stability for low through to mid range frequencies. Combined with 2.5” voice coils for improved thermal dissipation, you can expect consistent delivery at the highest of volumes throughout a performance.

ACOUSTICALLY MATCHED CABINET

The cabinet of the DVP X18B has been developed to work in perfect harmony with the advanced 18″ drive unit within. Special attention has been paid to the acoustic properties of the port and port mouth to ensure a huge bass output with detail and minimised distortion. DVP X18B is coated in the latest generation chip-resistant, Rhino Rock paint.

FINE-TUNED CROSSOVER

The crossovers ensure perfect integration between the drive units and acoustic properties of the cabinet. Electronic components are carefully selected, while over-complex networks have been avoided to maintain a pure and strong audio signal.

SPECIFICATIONS:

System Type	Passive
Configuration	Subwoofer
Frequency Response (+/- 3dB)	35-150Hz
Frequency Range (-10dB)	30-150Hz
Sensitivity (2.83v/1m)	99dB
System Rated Impedance	4Ω
Calculated Maximum SPL @1m	133dB
Low Frequency Transducer
Size	470mm / 18″
Voice coil size	65mm / 2.5”
Rated Impedance	4Ω
LF Power (re:AES-2012)	500w
Power
System Continuous Power	500w
System Programme Power	1000w
System Peak Power	2000w
Crossover Frequency	150Hz

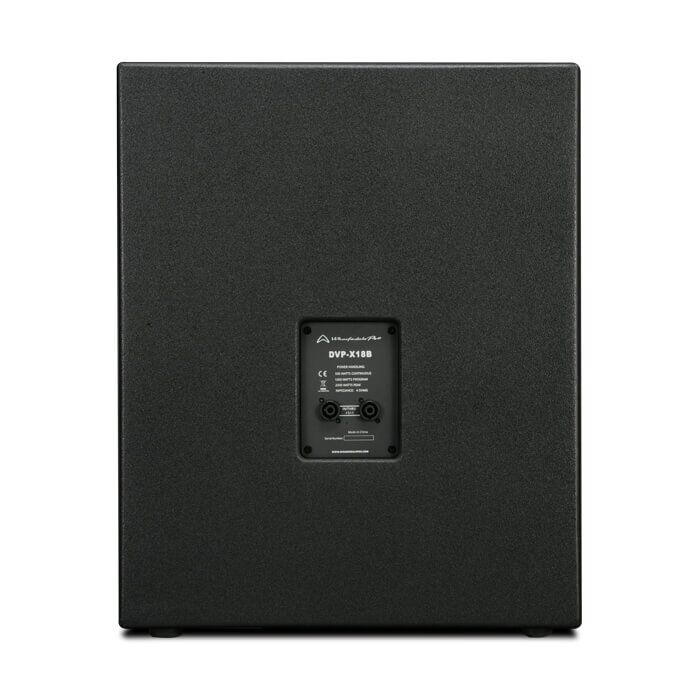

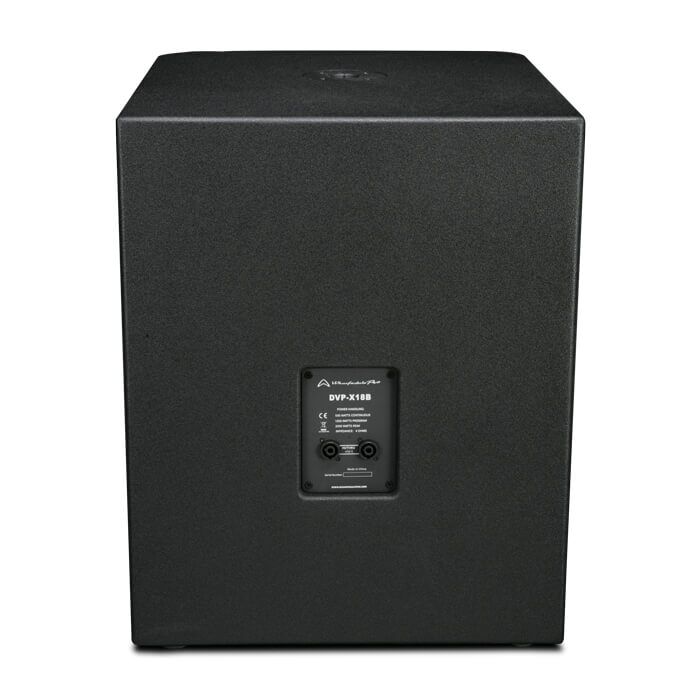

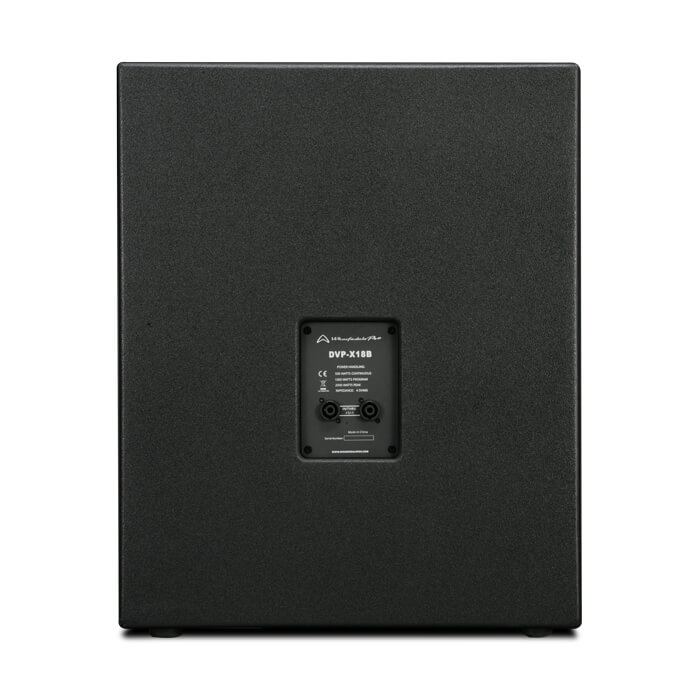

Hardware	2 x NL4 (speakON compatible) + 1/4″ Jack combo
	35mm pole socket
	2 carry handles
Enclosure
Enclosure Material and finish	MDF / Highest grade Rhino Rock
Colour Options	Black paint
Grille Material & Finish	Steel
Dimensions – Unpacked
Height	650mm / 25.6″
Width Front	650mm / 25.6″
Width Rear	650mm / 25.6″
Depth	639mm / 25.2″
Dimensions – Packed
Height	740mm / 29.1″
Width Front	725mm / 28.5″
Width Rear	725mm / 28.5″
Depth	614mm / 24.2″
Weight
Net Weight	35.3kg / 77.7lbs
Gross Weight	41.9kg / 92.2lbs
