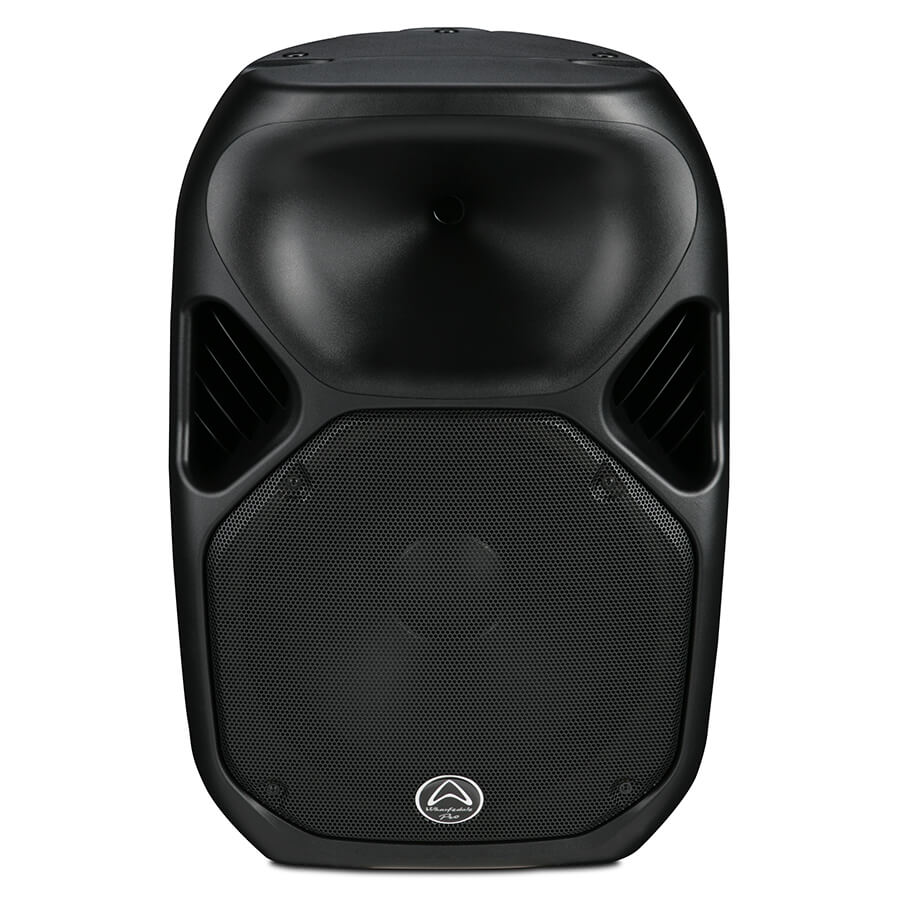

Wharfedale Pro Titan-AX15 Powered Speaker

420 watts programme / 840 watts peak
New IRIS X HF Drivers have been honed acoustically for high-frequency detail and power
New 3″ voice coil LF Drivers reject moisture for resistance in all environments
New Proprietary 100° x 80° Hybrid Symmetry Horn design
New category leading DSP functions
129dB Max SPL
Available in black or white

New tweaked laminar rib structure
Integral mixer functions
Class D Bi-amplified
Tough, yet lightweight Dynamic Polypropylene cabinet with rubber padded handles
10 x M8 rigging points and integral tripod stand adapter
Rugged protective grille and top-stacking receptacles
Trapezoid design for arrays as well as stage monitor applications

TITAN-AX15

Portable, lightweight and durable the Titan AX15 is one of our most versatile loudspeakers.

The all-new AX15 active loudspeaker now features our cutting edge 6-position DSP engine and all-new HF and LF drivers. No other competitive model features such powerful and effective DSP or such advanced transducers.

Rated at 840 watts peak and with 129dB Max SPL, it’s an ideal solution for small to medium sized venues.

We have also tweaked the laminar rib cabinet structure to improve structural strength for durability and acoustic performance. TITAN AX15 raises the bar for portable PA and is built to last.

LETS LOOK INSIDE

Titan loudspeakers pride themselves on custom Wharfedale Pro drivers. The IRIS-X HF compression driver used in Titan-AX12 and Titan-AX15 features a 1.75″ voice coil and is unique at this price point.

All Titan Active models are bi-amplified. The internal amplifiers have been tuned specifically for the HF and LF drivers that we have chosen. This makes for perfect power and frequency transfer, resulting in the sonic experience that you’d expect from a Wharfedale Pro active loudspeaker.

TITAN-AX MODELS WITH IRIS-X

The coil size and electrical sensitivity of a loudspeaker transducer is critical to its performance. Titan AX loudspeakers now include our proprietary IRIS X design which delivers Increased coil Radius and Increased electrical Sensitivity. The radius of the coil ensures smooth heat dissipation during prolonged high volume use, while the increased electrical sensitivity ensures that the transducer converts as much electrical power into sound output as the laws of physics allow.

A hot transducer wastes energy, risks damage and distorts. IRIS X reduces this through improved heat dissipation and improved efficiency.

In real-world terms, IRIS X transducers deliver higher SPL with less distortion. They lead the market with specifications and are designed and built entirely within Wharfedale Pro.

Increased Radius Increased Sensitivity

WE ARE NOT FANS…OF FANS

ssssssh ! The two amplifiers inside all Titan Active models are extremely efficient.

So efficient that they can use convection cooling. This means that there are no fans!

Fans inside loudspeakers can add to operational noise, weight, price and can lead to reliability issues. Titan actives have no fans! Ssssssh! – Silent and reliable operation.
