Description

TITAN SUB A12

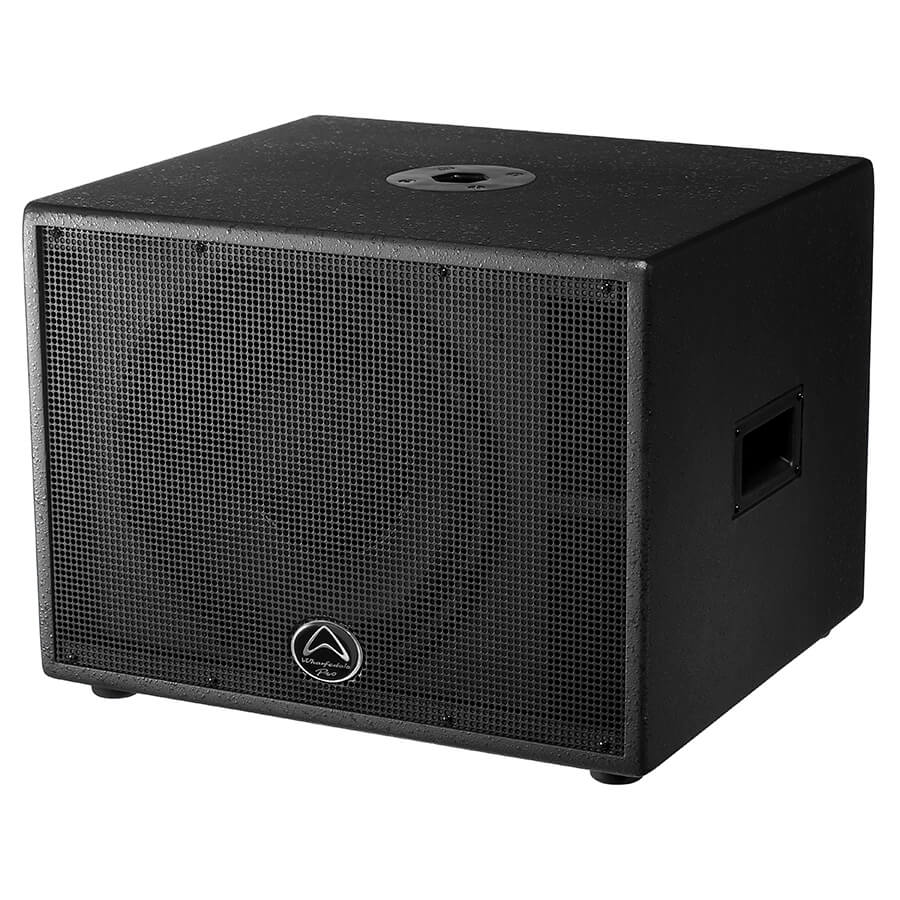

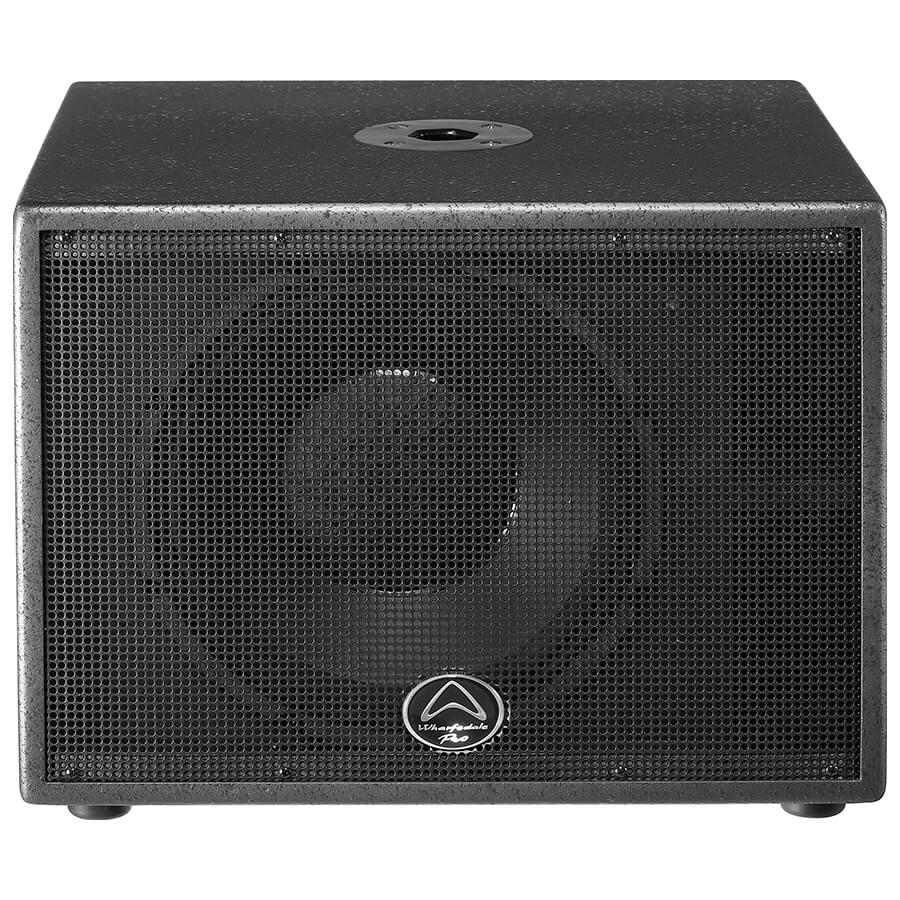

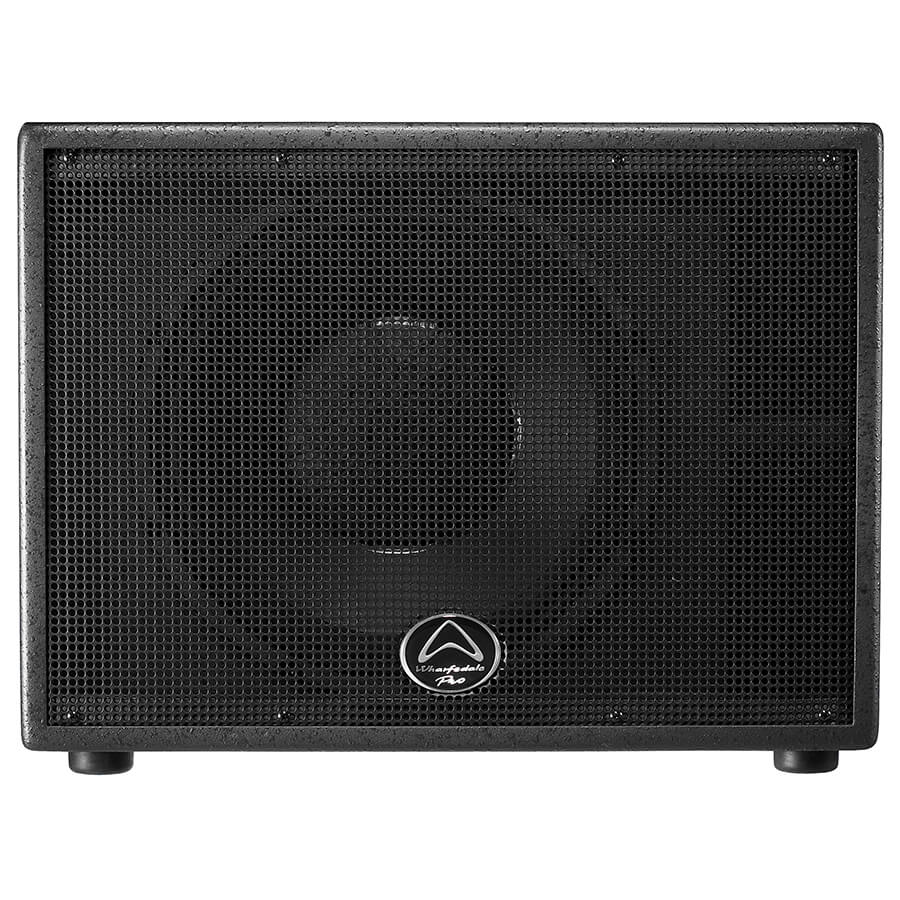

The Wharfedale Pro Titan Sub-A12, is a powerful active subwoofer system for small to medium active PA speaker setups. It utilises a 12” active reflex subwoofer to generate 250W RMS (500W peak) power, with a frequency response of 55-200Hz. It’s a perfect match teamed up with the Wharfedale Titan 8A MKII for an incredibly portable sound reinforcement system.

.2.5“

Voice coil

127 dB

Max SPL @ 1 meter

250 watts

Continuous power

500 watts

Peak power

SOLID BASS

Compact, portable and powerful.

A powerful 12” reflex subwoofer designed to provide bass extension for 8″ active systems for an incredibly portable sound reinforcement setup.

Perfect for Tourus-AX8, Titan 8A MKII or even Typhon-AX8 models

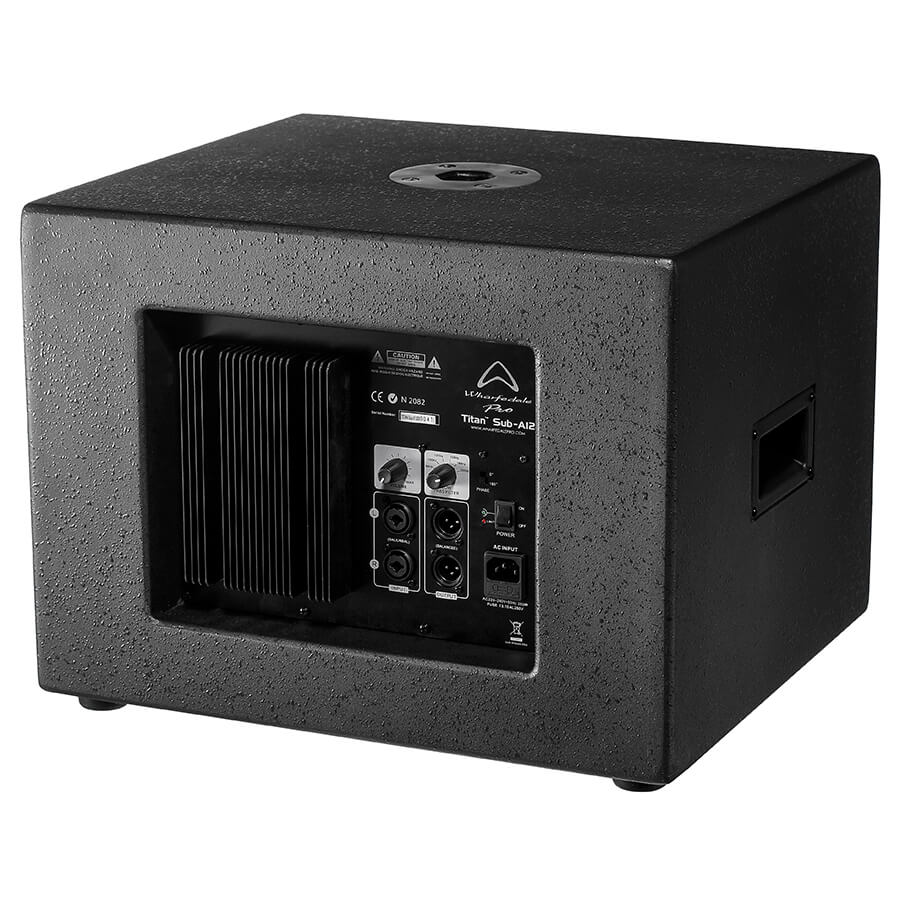

A built-in 250 W (continuous), 500 W (peak) amplifier conveniently accepts stereo or mono line level inputs via dual, balanced, XLR- 1/4” combo connectors.

PRACTICAL FEATURES

• Preset integral peak limiter prevents signal distortion and amplifier clipping

• Integral phase switch with 0° and 180° selections

• Adjustable crossover frequency: 80 Hz / 100 Hz / 120 Hz / 150 Hz / 180Hz / 200Hz

• High pass frequency selection:150 Hz

• Thermal, DC fault and short circuit protection

• XLR / 1⁄4 ” combo jack inputs

• Balanced line level output

• Integral pole mount adapter

NEED SOMETHING BIGGER?

Titan SUB-A12 is portable, powerful and practical but….to move even more air, the 15″, 700 W Continuous T-SUB-AX15B is the next step up.

SPECIFICATIONS

Model Name	Titan Sub A12
System Type	Active 12″ Reflex Subwoofer
Frequency Response (+/-3 dB)	55 Hz-200 Hz
Frequency Range (-10 dB)	50 Hz-200 Hz
Calculated Maximum SPL @1 m	127 dB
LF Transducer Size (mm / inches)	305 mm / 12”
Coil Size (mm / inches)	64.26 mm / 2.5″
Amplifiers
Low-Frequency Power Amplifier RMS/Peak Watts	250/500 W (Class D)
Controls—EQ	Crossover filter : 80 Hz – 200 Hz (adjustable)
DSP
Hi Pass switch	150 Hz
Amplifier Protection / Thermal protection	Yes
Low Line Voltage Shut Down	60% Nominal line voltage
Driver Protection	Independent LF limiters
DC Protection / Short Protection	Yes
Clip Limiter	Tums on ~250 W output
Limiter Indicator / Power Indicator	Red LED / Green LED
Connectors
Input – type	0 / 180° phase switch
Input Connector	2 * XLR 1/4″ Combo Jack
Line Output Connector	Hi Pass out : 2 * Balanced XLR
AC Power Supply	SMPS
AC Power Options	AC100-120 V~/220-240 V~,50/60 Hz
Hardware
Rigging / Bracket / Mounting Options	35 mm socket
	2 carry handles (one on each side)
LED Horn lighting (On/Off switch)	No
Enclosure Material and finish	15 mm MDF
Colour Options	Grey / Black
Grille Material & Finish	1.2 mm steel
Dimensions – Unpacked – Height	360 mm / 14.2”
Width Front	493 mm / 19.4”
Depth	431 mm / 16.9”
Dimensions – packed – Height	440 mm / 17.3”
Width Front	560 mm / 22.0”
Depth	440 mm / 17.3”
Net Weight (kg / lbs)	22.31 kg / 49.0 lbs
Gross Weight (kg / lbs)	26.26 kg / 57.8 lbs
