Proel PA AH50T 5″ Hanging Pendant Speaker
EN 54 24 Hanging Speaker ARTIA SERIES

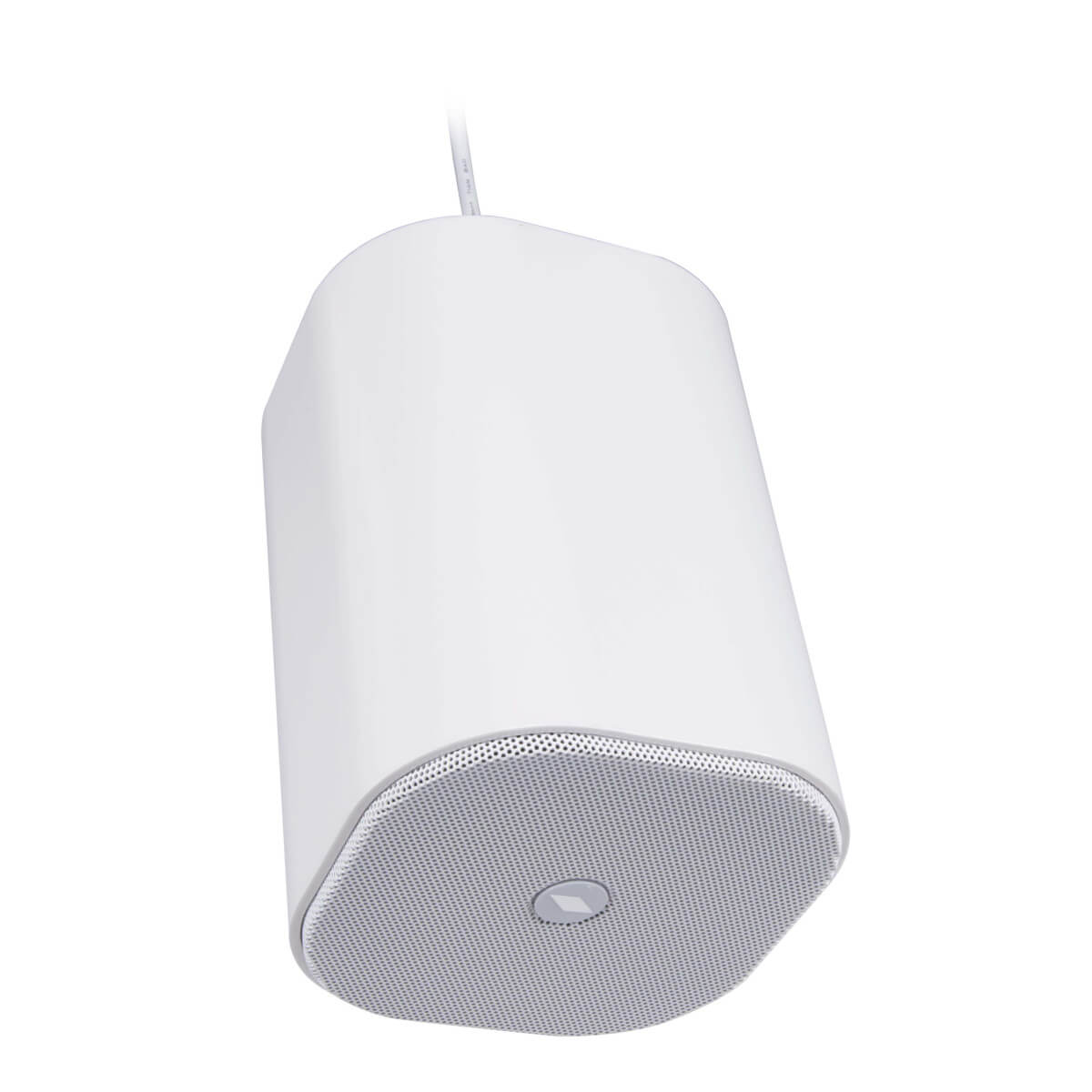

AH50T is an elegant indoor/outdoor hanging speaker featuring an epoxy coated high-grade aluminum extrusion enclosure. It is equipped with a 127 mm (5”) full-range driver, able to provide an excellent speech intelligibility with wide dispersion, together with a good background music reproduction.
AH50T includes a transformer to operate on 100V and 70V constant voltage systems with three different power taps. In compliance with EN 54-24:2008, it includes a ceramic terminal block and a thermal fuse and it is, therefore, suitable for the use in voice alarm systems.
Thanks to its rugged construction and IP55 protection, this units is suited for both indoor and outdoor application in malls, exhibition centres, railway and bus stations, etc.
Artia series EN54 24 Pendant speaker, 5″ Full Range driver, Epoxy coated high-grade aluminum extrusion enclosure, 20/10/5 Watt @100V, 100V/70V built-in Line transformer, 8 Ω, Ceramic Terminal block coonnection,120Hz – 12kHz Frequency Response (-10 dB), 90dB SPL (1W/m), 99.3 Max SPL, 180° Coverage Angle, White coloured, IP55C
SPECIFICATIONS:
Technical specifications
| System Type | Hanging Speaker |
| Drivers | 5″ dual cone full range |
| Rated Noise Power | 100h 20 W |
| Power rating @ 100V | 20 / 10 / 5 W |
| Power rating @ 70V | 10 / 5 / 2.5 W |
| Impedance 500 / 1K / 2K Ω @ 100V | 500 / 1K / 2K Ω @ 70V |
| Connector | Ceramic Terminal block |
| Power selection | On Terminal Block |
| Measure Environment | Free Field |
| Frequency Response (-10 dB) | 120 -12k Hz |
| Sensitivity at 1W (1 kHz, 1m / 4m) | 90 / 78 dB |
| Sensitivity at 1W (Pink Noise 6dB Crest Factor, 1m / 4m) | 87 / 75 dB |
| Max SPL (Pink Noise 6dB Crest Factor, 1m / 4m) | 99.3 / 87.3 dB |
| Coverage Angle at 500 / 1k / 2k / 4k Hz (-6dB) | Hor.: 360° / 190° / 125° / 90° Vert: 360° / 190° / 125° / 90° |
| Cabinet | White (RAL 9016) |
| Material | Aluminium |
| Environmental | Type B |
| Protection Degree | IP55C |
| Operating Temperature | -25 ÷ +55 °C (-13 ÷ +131 °F) |
| Relative humidity | < 95% |
| Dimensions (mm) | 140 x 140 x 195 (W x H x D) |
| Mounting | suspended from ceilings |
| Weight | 2.77 kg (6.11 lb) |
| Standard Compliance | EN54-24:2008 |
| Certification | 0051-CPR-1998 |
