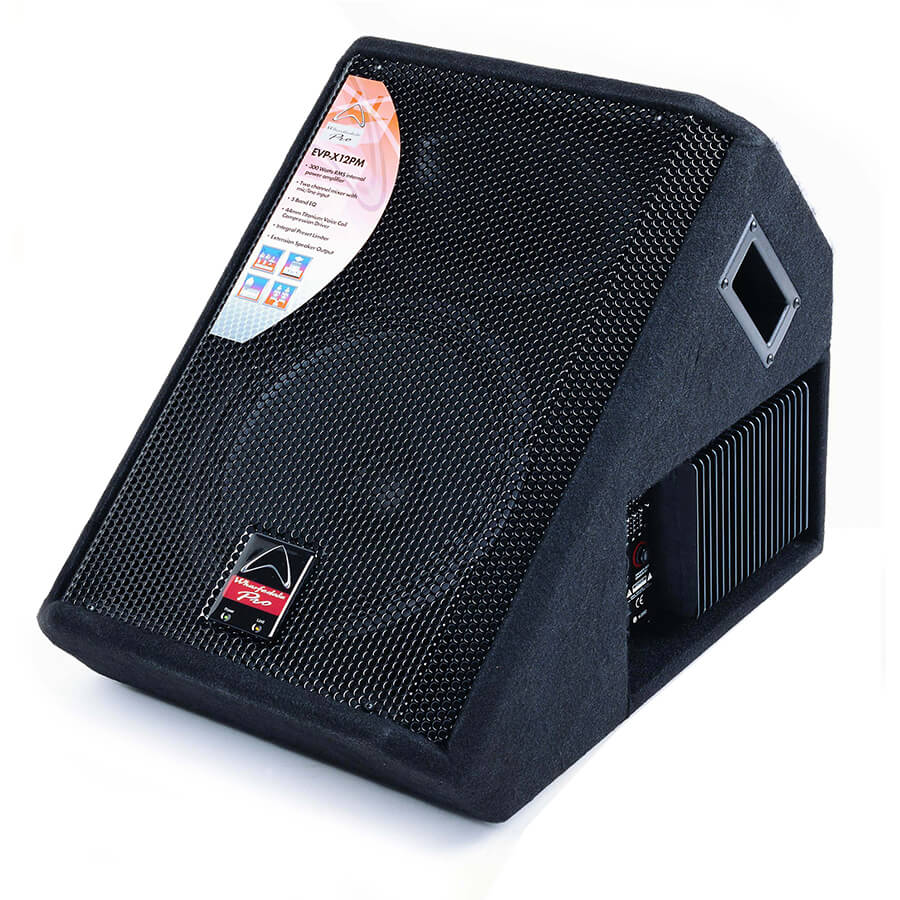

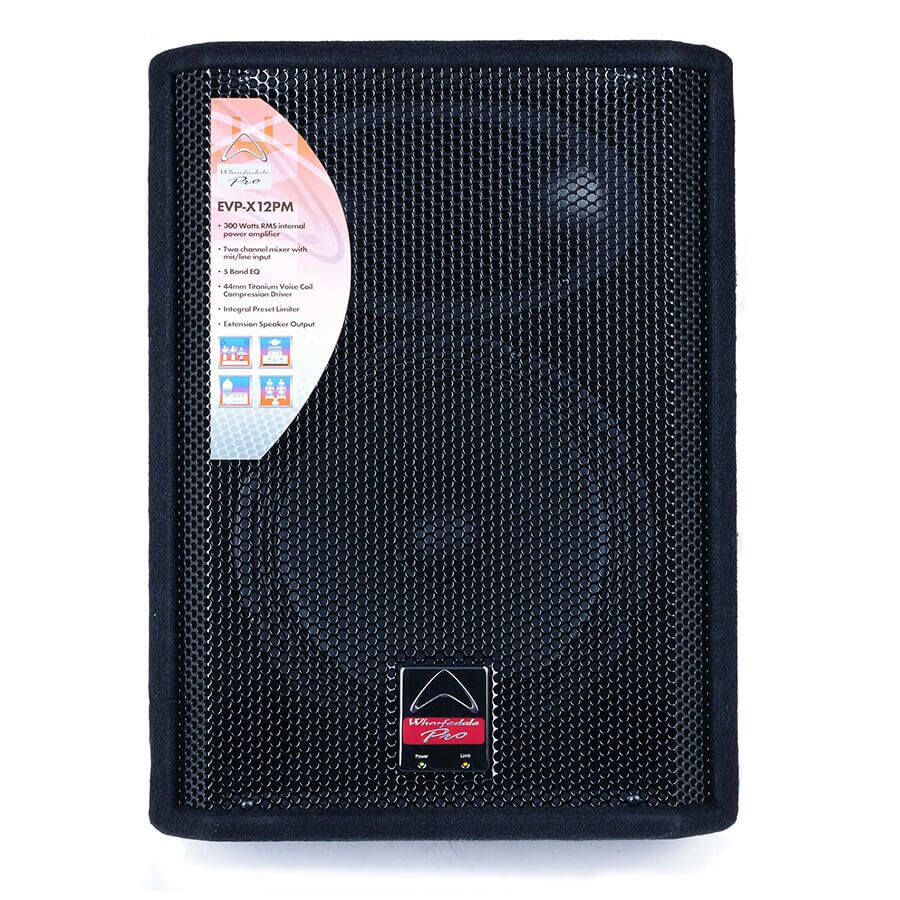

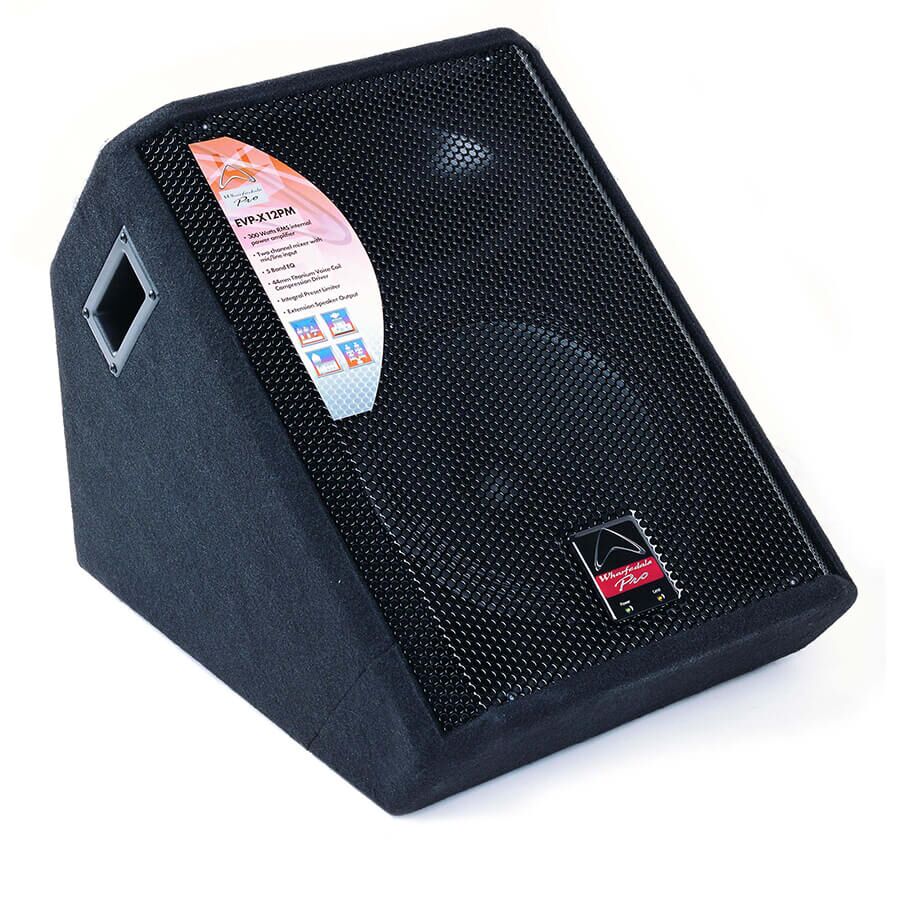

Wharfedale Pro EVP-X12PM Active Floor Monitor

12″ Active bi-amplified floor monitor
90 x 60 Elliptical Wave Guide Horn with 1.75″ (44mm) titanium diaphragm driver
High power handling, high efficiency
ProTech™ Driver
5 Band Graphic EQ
XLR / Jack Combi Input
XLR Output
Powered output for additional passive monitor
Durable black carpet covering

Delivering everything that made the EVP-X Series a best seller, the EVP-X12PM is built for the stage, with even more convenience. Complete with the same pro-tech drivers, elliptical waveguide horn technology and of course, tonnes of power the EVP-X12PM is also powered, without the need for an amplifier. Specially developed for on-stage monitoring, the amplifier module includes a 5-band EQ and a separate amplified output to connect to an additional stage monitor such as the EVP-X12M.

KEEP IT TIDY

EVP-XPM active floor monitors have been specifically designed to give maximum versatility on stage.

These are not just active monitors turned sideways but are built specifically as floor monitors. The inclusion internal amplification, a 5-band graphic EQ and well thought out connectors, reduces unnecessary cabling and additional hardware on stage. The balanced input uses a combi XLR/jack connector so it’s easy to always find suitable connection cables.

POWER OUT

EVP-XPM’s also feature a unique powered ‘Speaker output’ jack. This allows for connection to a passive secondary monitor (such as the EVP-X15M MKII) without the need for additional amplification or complex cabling. The speaker output system is designed to drive a passive loudspeaker with 8 ohm impedance.

A LITTLE LOVE AND PROTECTION

Externally the EVP-XPMs are protected by a durable carpet finish.

Internally the Dynamic / AGC protection circuitry provides extreme protection at both the driver and the amplifier stage so the EVP-XPM can be played at maximum levels over long periods without fear of system failure. The Green LED on the front of the EVP-XPM illuminates when the AGC is activated, similar to the orange LED on the front of the amplifier.

A LITTLE ON THE SIDE

Looking closely at the connectors and controls

SAME POWER, NO EXTERNAL AMPLIFIER

The power amplifier section of the EVP-XP series uses Class A/B topology and is designed to integrate seamlessly, giving the optimum smooth performance across the range. The EVP-X12PM model contains the higher rated 300W continuous / 500W peak amplifier.

PROTECT

Dynamic / AGC protection circuitry provides extreme protection at both the driver and the amplifier stage so the EVP-XPM can be played at maximum levels over long periods without fear of system failure. The Green LED on the front of the EVP-XPM illuminates when the AGC is activated, similar to the orange LED on the front of the amplifier.

CONTROL AND EXPAND YOUR SOUND

The EVP-X12PM features a 5 band graphic equalizer accessible on the side of the unit. This allows the user more control over feedback and unwanted noise when monitoring. Both loudspeakers also have the added benefit of a ‘Speaker Out’ output which allows the user to add on or to ‘daisy chain a passive EVP-X12M / 15M into the system directly from the EVP-X12PM.

SPECIFICATIONS

Configuration	2-way Bi-Amplified
High Frequency Transducer	1.75″ Titanium Compression Driver
Low Frequency Transducer	12″
Frequency Response	50Hz – 20kHz
Power (RMS/Peak)	300W / 500W
EQ	5-Band
Enclosure Finish	Black Carpet
Input	1 x XLR Jack / Combi
Output	1 x XLR, 1 x 6.3mm Jack (Powered output)
Protection	Dynamic / AGC protection circuitry
Dimensions (H x W x D)	560mm X 424mm X 441mm
Net Weight	22.5kg
Gross Weight	25.1kg

Click to enlarge

Order on WhatsApp

Call 0740418548

Add to wishlist

Categories: PA Equipment, Powered Speaker, Speakers

Description

Configuration	2-way Bi-Amplified
High Frequency Transducer	1.75″ Titanium Compression Driver
Low Frequency Transducer	12″
Frequency Response	50Hz – 20kHz
Power (RMS/Peak)	300W / 500W
EQ	5-Band
Enclosure Finish	Black Carpet
Input	1 x XLR Jack / Combi
Output	1 x XLR, 1 x 6.3mm Jack (Powered output)
Protection	Dynamic / AGC protection circuitry
Dimensions (H x W x D)	560mm X 424mm X 441mm
Net Weight	22.5kg
Gross Weight	25.1kg
